BREW HOUSE


BREW HOUSE − OPTIMIZED EFFICIENCY WITH STUNNING LOOKS

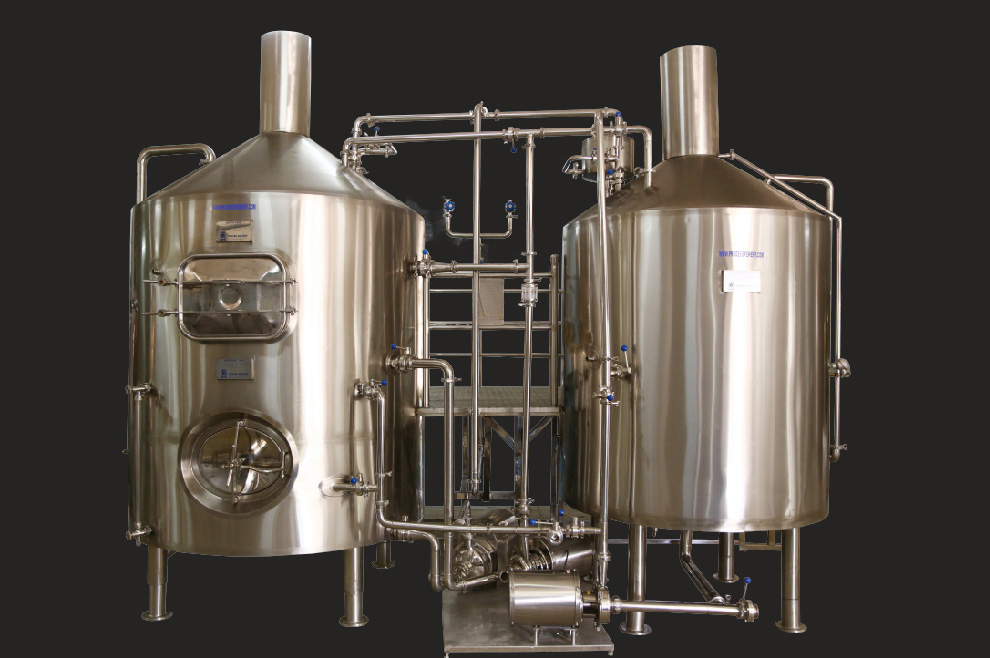

The backbone of your brewery. Prodeb brewhouses are the culmination of years of research and development, resulting in a system that integrates all processes of brewing from Grist Hydration, Pre-Mashing, Mashing, Lautering, Sparging, Boiling and Whirlpooling into a single system. Our focus on technology ensures minimum footprint with maximized efficiency and hygiene, coupled with the lowest cost of capital investment as well as operation and maintenance. Brew more beer with prodeb revolutionary brew house technology as it takes lesser time to complete your brewing cycle with ease. We have worked with multiple brewmasters and taken all their opinions in consideration when designing our brewhouse to ensure that our systems are nothing short of a brewer's delight and supports all their actions effortlessly to produce the best beer possible.

brew house

Characteristics Prodeb brewhouses:

  • Grist hydration system on top of mashing tank.
  • Variable speed control in mash and lauter rake.
  • Multi step Mashing process control with PLC.
  • High quality certified SS304. Optionally, SS316 can also be used if needed by the client.
  • All piping is TRC fitted, including every elbow, tee and curve in the system; allows for a 100% sanitary system
  • High quality internal and external welding and polishing.
  • Highest extraction of the malted grain.
  • Larger Lautering area.
  • Multi collection pot under false bottom of lauter.
  • Specialized Sparging nozzle.
  • Greater separation of unwanted proteins to forms a perfect trub in the whirlpool.

OUR PRODUCTS

BREWERY ESSENTIALS

  • Brew House
  • Fermentation Tank
  • Hot Liquor Tank
  • Cold Liquor Tank
  • Asepsis Tank

    • ACCESSORIES

  • Malt Mill
  • Wort Cooling System
  • BBT and Storage tanks
  • Cip System
  • Refrigeration System
  • Glycol Tank
  • Control Panel
  • Filters
  • Yeast Propagation Tank
  • Wort Oxygenation Device
  • Brewing Water
  • Pumps
  • Selling Pillars
  • Centrifuge
  • Waste Water Treatment
  • Keg Washer

    • brewery equipment

    brewhouse

    brew house equipment

    Prodeb Brewery Technology, Belgium knowledge of traditional beer making with cutting edge technology. This gives the client a high performance brewing system.

    Prodeb offers brewhouses in 3 size ranges:

    • PILOT
    • 3-10HL (microbrewery and craft brewery)
    • 20HL+ (Craft and Industrial brewery)

    PILOT / HOME BREW Systems

    This popular option is for clients looking to have all of the features of our larger brewhouses, but in a much smaller size. This system for example could allow some of our larger clients to run test batches on a smaller scale, while matching the build and layout of their larger counterpart to allow for accurate comparison. This system is also perfect for the avid homebrewer to achieve brewery level quality in their brews. All our pilot systems include a HLT. Our Pilot systems come in 2, 3, or 4 vessel configurations.

    OPTIONS WE PROVIDE ON OUR PILOT SYSTEMS:

    • Automation systems
    • Complete Grain Mill Systems
    • Various Stainless Steel Finishes :Polished, Brushed and Satin Finish options

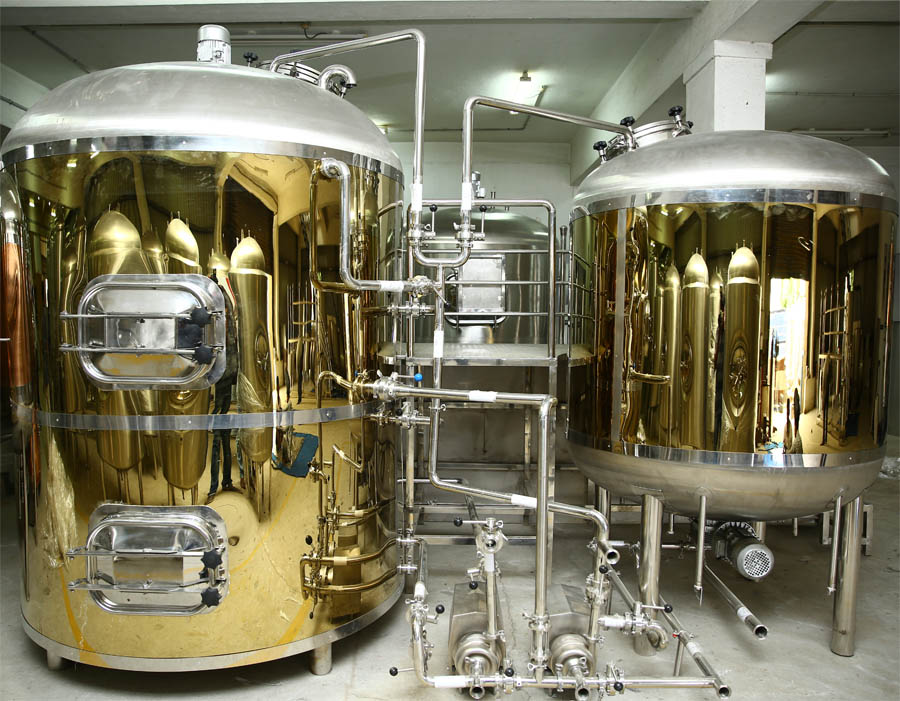

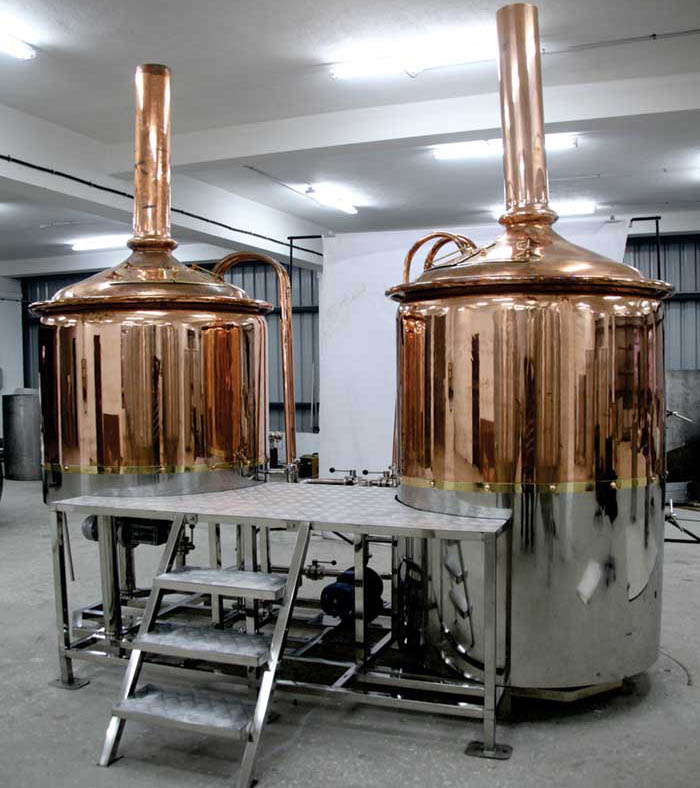

    • Cladding options: Copper Cladding and/or Copper accents, Copper Titanium Cladding, Gold Titanium Cladding, Matte Black titanium Cladding.

    3-10HL Systems AND 20HL+ SYSTEMS:

    At Prodeb, our brewing systems are all built turnkey and offer several advantages that outshine those of our competitors. All vessels have an impeccable heating and cooling system through our jacket design. With a high percentage of dimples and an internal spacing of 7 mm, our jackets have 130% more heating and cooling potential than tanks with the usual 3 mm gap seen in inflated jackets. All rakes in our brewhouses include an automatic outplow paddle design. This allows the brewer to plow out spent grain just by reversing the direction of the rake. Our water jet cut screens also represent our dedication to detail.

    We use water jet cut screens as the standard for all of our false bottom screens to improve drainage, increase efficiency and promote consistently clear wort. Sanitation is always top priority when producing your brews. Prodeb is proud to be one of the few companies that have a standard of making sure that every corner, tee, manifold etc. is fitted with TRC connections and clamped NOT welded. This allows our clients to inspect their system at every angle. On the areas that need to be welded, we make sure to grind smooth, polish and passivate every TIG weld. Even the largest possible stainless steel sheets are joined and butt−welded to create a stronger tank. To further ensure sanitation and quality, everything that comes in contact with your product, from the handles to the motor is 100% stainless steel and is made to be fully dismantled and easy to clean. While prodeb makes sanitation and quality a priority, we want to go even further in proving our dedication by ensuring visual satisfaction. We also offer various special features from linear piping systems to customized nameplates to make sure that every vessel represents the same attention to detail that our clients show through their product.

    OPTIONS WE PROVIDE WITH OUR 3-10HL and 20HL+ SYSTEMS:

    • Automation systems
    • Complete Grain Mill Systems
    • Various Stainless Steel Finishes :Polished, Brushed and Satin Finish options
    • Cladding options: Copper Cladding and/or Copper accents, Copper Titanium Cladding, Gold Titanium Cladding, Matte Black titanium Cladding.
